• Fast-WL-933-GAK

    • Product Model: Fast-WL-933-GAK

      Product features:
      1. Super fast start;
      2. Die casting aluminum shell, the product all the potting process, heat dissipation good performance;
      3.12 V voltage 9 ~ 16 V, 24 V working voltage 18 ~ 32 V belt protection, short circuit protection, open the overpressure protection function;
      4. The outer split type ignition coil, the constant power output;
      5. Using the environment - 40 ℃ ~ + 85 ℃ temperature range.
      6. Waterproof, shockproof, meet the use requirement.

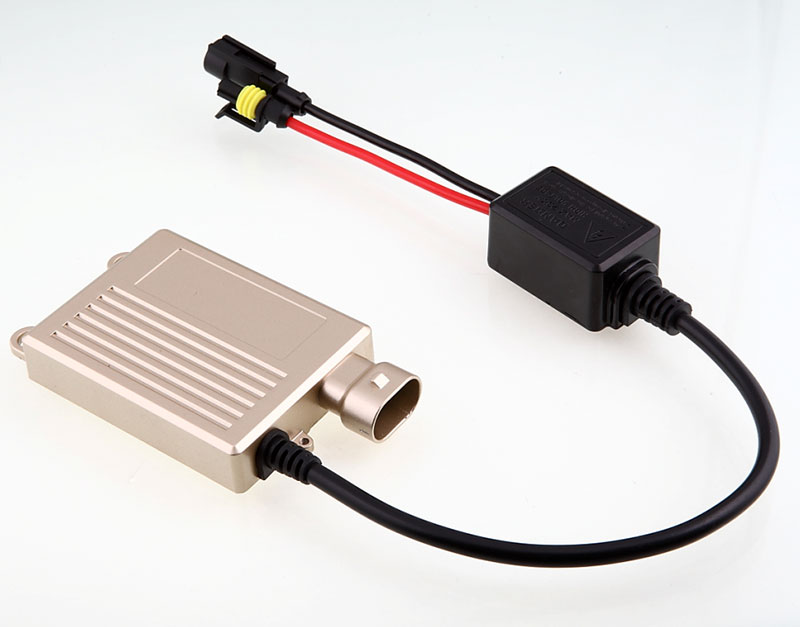

    View PictureFast-WL-933-GAK
    • Introduction
    • Details
    • Specification
    Product features:
    1. Super fast start;
    2. Die casting aluminum shell, the product all the potting process, heat dissipation good performance;
    3.12 V voltage 9 ~ 16 V, 24 V working voltage 18 ~ 32 V belt protection, short circuit protection, open the overpressure protection function;
    4. The outer split type ignition coil, the constant power output;
    5. Using the environment - 40 ℃ ~ + 85 ℃ temperature range.
    6. Waterproof, shockproof, meet the use requirement.

    Scope of application:
    This product is suitable for cars headlamps.

    　　　　　　　　35W Mingdu HID　　　　　　　　　　　　　　　　55W Halogen Lamp


    Model

    MDE-933- GAK

    Specification

    12V/55W

    24V/35W

    24V/55W

    Terminal

    AMP

    AMP

    AMP

    Color

    gold

    gold

    sliver

    Input Voltage

    9~16V DC

    18~32V DC

    18~32V DC

    Start Current

    8±0.5A

    4．0±0.5A

    4±0.2A

    Stable Input Current

    4.6±0.2A

    1.8±0.1A

    2.3±0.1A

    Input High Voltage Protection

    16.5±0.5V

    32±0.5V

    33±0.5V

    Rated Output Power

    55 ±2.0W

    35±2.0W

    55 ±2.0W

    Output Frequency

    250Hz ±10%

    250Hz±10%

    250Hz ±10%

    Output Short Circuit Protection

    Automatically stop working within 3s while short circuit

    Output Open Circuit Protection

    Automatically stop working within 3s while open circuit

    Working Efficiency

    ≥83%

    Working Temperature

    -40℃～+85℃

    Lifetime

    ≥3500 hours
