• Canbus-WL-832-UAC

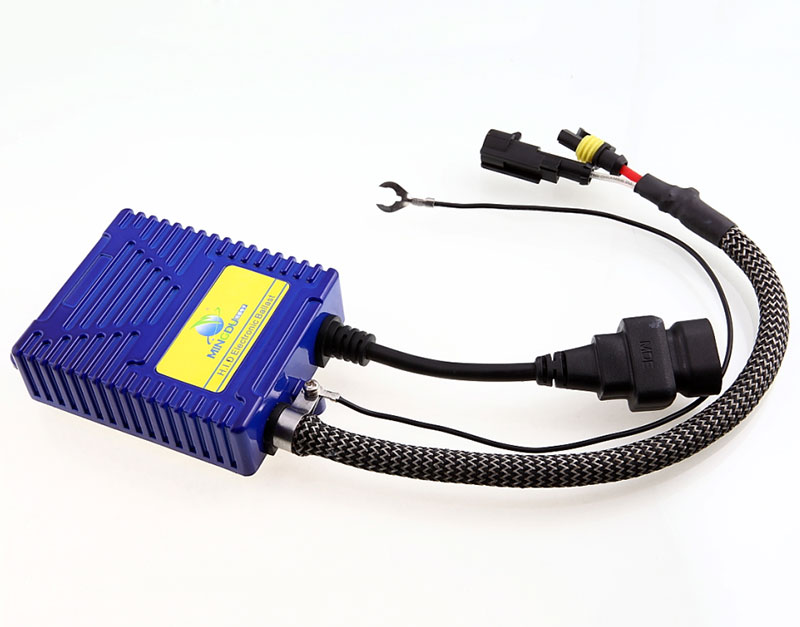

    • Product Model: Canbus-WL-832-UAC

      Product features:
      1. WL - 832 die-casting aluminum shell, built-in WL1305 circuit board;
      2. All products potting process;
      3. The working voltage 9 ~ 16 v, with reverse protection, open circuit protection, short circuit protection, the overpressure protection function;
      4. The constant power output;
      5. Using the environment temperature range - 40 ℃ ~ 85 ℃;
    View PictureCanbus-WL-832-UAC
    • Introduction
    • Details
    • Specification
    Product features:
    1. WL - 832 die-casting aluminum shell, built-in WL1305 circuit board;
    2. All products potting process;
    3. The working voltage 9 ~ 16 v, with reverse protection, open circuit protection, short circuit protection, the overpressure protection function;
    4. The constant power output;
    5. Using the environment temperature range - 40 ℃ ~ 85 ℃;
    6. Waterproof, shockproof, satisfies the requirement of automobile and motorcycle use;

    Scope of application:
    This product is suitable for automobile, motorcycle headlamps modified.

    　　　　　　　　35W Mingdu HID　　　　　　　　　　　　　　　55W Halogen Lamp


    Model

    WL-832-UAC

    Specification

    12V35W  CANBUS

    Terminal

    AMP

    Color

                      Blue

    Input Voltage

    9~16VDC

    Start Current

    5.0±0.50A

    Stable Input Current

    3.60±0.15A

    Input High Voltage Protection

    17.5V

    Rated Output Power

    35±1.5W

    Output Frequency

    250±10%Hz

    Working Efficiency

    ≥80%

    Working Temperature

    -40℃～85℃

    lifetime

    ≥3000 hours
