• Canbus-WL-811-BAC

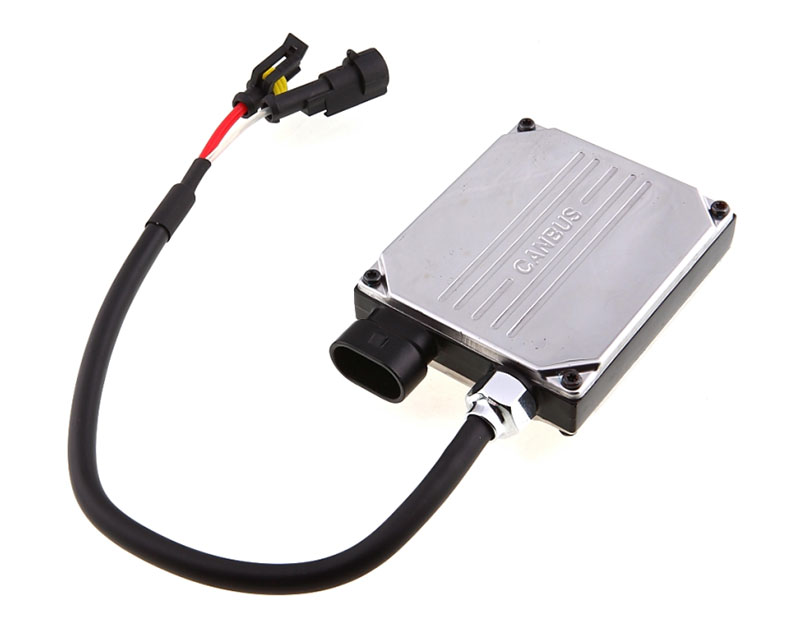

  • Product Model: Canbus-WL-811-BAC

      Product features:
      1. WL - 811 die-casting aluminum shell, built-in WL1305-1 (thin CANBUS one-piece) in the circuit board;
      2. All products potting process;
      3. The working voltage 9 ~ 16 v, with reverse protection, open circuit protection, short circuit protection, the overpressure protection function;
      4. The constant power output;
      5. Using the environment temperature range - 40 ℃ ~ 85 ℃;
    • Introduction
    • Details
    • Specification
    Product features:
    1. WL - 811 die-casting aluminum shell, built-in WL1305-1 (thin CANBUS one-piece) in the circuit board;
    2. All products potting process;
    3. The working voltage 9 ~ 16 v, with reverse protection, open circuit protection, short circuit protection, the overpressure protection function;
    4. The constant power output;
    5. Using the environment temperature range - 40 ℃ ~ 85 ℃;
    6. Waterproof, shockproof, satisfies the requirement of automobile and motorcycle used.

    Scope of application:
    This product is suitable for automobile, motorcycle headlamps modified.

            35W Mingdu HID               55W Halogen Lamp


    Model

       WL-811-BAC

    Specification

    12V35W  CANBUS

    Terminal

    AMP

    Color

                      Black

    Input Voltage

    9~16VDC

    Start Current

    3.60±0.50A

    Stable Input Current

    3.60±0.15A

    Input High Voltage Protection

    17.5-18V

    Reverse connect protection

    Test Reverse connect

    Output Open Circuit Protection

    Automatically stop working within 2s while open circuit

    Output Short Circuit Protection

    Automatically stop working within 3s while short circuit

    Rated Output Power

    35±1.5W

    Output Frequency

    250±10%Hz

    Air Striking Distance

    6.5-7mm

    Working Efficiency

    ≥80%

    Working Temperature

    -40℃~85℃

    Lifetime

    ≥3000 hours
