• Canbus-MDE-981-BAC

    • Product Model: Canbus-MDE-981-BAC

      Product features:
      1.981 die-casting aluminum shell, built-in MDE1405 1 circuit board;
      2. Product full potting processing, die-casting aluminum back cover with screws;
      3. The working voltage 9 ~ 16 v, with open circuit protection, short circuit protection, the overpressure protection function;
      4. The outer split type ignition coil, the constant power output;
      5. Using the environment temperature range - 40 ℃ ~ 85 ℃.

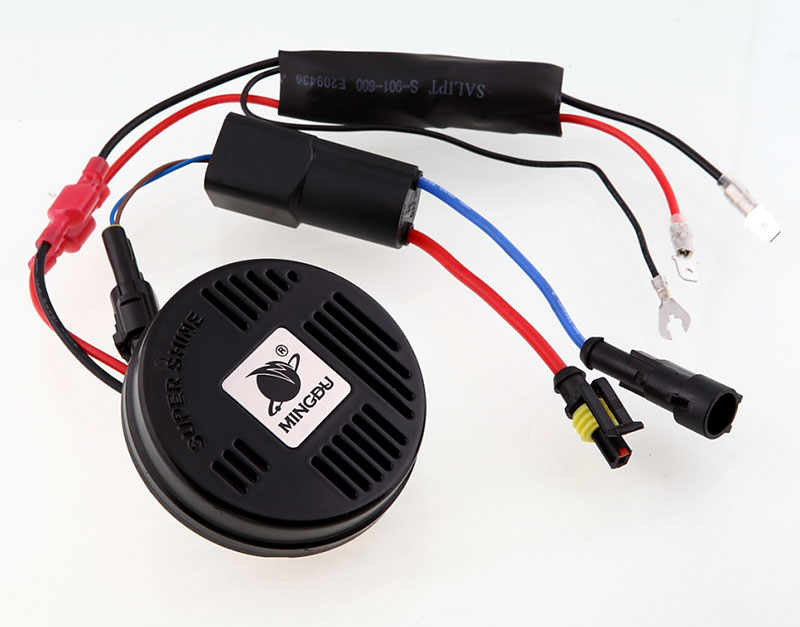

    View PictureCanbus-MDE-981-BAC
    • Introduction
    • Details
    • Specification
    Product features:
    1.981 die-casting aluminum shell, built-in MDE1405 1 circuit board;
    2. Product full potting processing, die-casting aluminum back cover with screws;
    3. The working voltage 9 ~ 16 v, with open circuit protection, short circuit protection, the overpressure protection function;
    4. The outer split type ignition coil, the constant power output;
    5. Using the environment temperature range - 40 ℃ ~ 85 ℃.
    6. Waterproof, shockproof, satisfies the requirement of automobile and motorcycle used.

    Scope of application:
    This product is suitable for automobile, motorcycle headlamps modified.

    　　　　　　　　35W Mingdu HID　　　　　　　　　　　　　　　55W Halogen Lamp


    Model

    MDE-981 -BAC

    MDE-981 -AAC

    Specification

    12V/35W

    12V/35W

    Terminal

    AMP

    AMP

    Color

    Black

    Silver

    Input Voltage

    9~16V DC

    Start Current

    5±0.5A

    Stable Input Current

    3.5-3.6A（Without CANBUS module） 3.65-3.75A（With CANBUS module）

    Input High Voltage Protection

    16.5±0.5V

    Rated Output Power

    35±2.0W

    Output Frequency

    250Hz±10%

    Air Striking Distance

    ≥8mm

    Output Short Circuit Protection

    Automatically stop working within 3s while short circuit

    Output Open Circuit Protection

    Automatically stop working within 1s while open circuit

    Working Efficiency

    ≥82%

    Working Temperature

    -40℃～85℃

    Lifetime

    ≥3000 hours
